SERVICE MANUAL
Sony Corporation
Personal Audio Division
Published by Sony Engineering Corporation
US Model
Canadian Model
AEP Model
UK Model
D-NE20
E Model
D-NE20/NE20LS
Australian Model
D-NE20
Chinese Model
D-NE20LS
Tourist Model
D-NE20
PORTABLE CD PLAYER
9-879-267-03
2005K16-1
© 2005.11
Ver. 1.2 2005.11
SPECIFICATIONS
D-NE20/NE20LS
Model Name Using Similar Mechanism
NEW
CD Mechanism Type
CDM-3325ERV
Optical Pick-up Name
DAX-25EV
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wavelength:
= 770 - 800 nm
Emission duration: Continuous
Laser output: Less than 44.6
µW
(This output is the value measured at a distance
of 200 mm from the objective lens surface on the
optical pick-up block with 7 mm aperture.)
D-A conversion
1-bit quartz time-axis control
Frequency response
20 - 20 000 Hz
+1
-2 dB (measured by JEITA)
Output (at 3 V input level)
Line output (stereo minijack)
Output level 0.7 V rms at 47 k
Recommended load impedance over 10 k
Headphones (stereo minijack)
Approx. 5 mW + Approx. 5 mW at 16 k
(Approx. 1.5 mW + Approx. 1.5 mW at 16 k
)*
*For the customers in Europe
Optical digital output (optical output connector)
Output level: ­21- ­15 dBm
Wavelength: 630 - 690 nm at peak level
Power requirements
· Sony NH-14WM rechargeable battery:
1.2 V DC
× 1
· LR6 (size AA) battery: 1.5 V DC
× 1
· AC power adaptor (DC IN 3 V jack)
· Rated current: 1 A
Operating temperature
5
°C - 35°C (41°F - 95°F)
Dimensions (w/h/d) (excluding projecting parts
and controls)
Approx. 127
× 13.1 × 132.5 mm (5 ×
17
32
× 5
1
4
in.)
Mass (excluding accessories)
Approx. 116 g (4.1 oz.)
Supplied accessories
· AC power adaptor
· Charging stand
· External battery
· Rechargeable battery
case with cover
· Battery carrying case
· Carrying pouch
· Earphones
· Remote control
· CD-ROM (SonicStage)
· Operating instructions
· Installation/Operating Guide
· AC plug adaptor (Supplied with tourist model)
US and foreign patents licensed from Dolby
Laboratories.
Design and specifications are subject to change
without notice.
Photo : RED


background image
2
D-NE20/NE20LS
CAUTION
· INVISIBLE LASER RADIATION
WHEN OPEN
· DO NOT STARE INTO BEAM OR
VIEW DIRECTLY WITH OPTICAL
INSTRUMENTS
· CLASS 1M INVISIBLE LASER
RADIATION WHEN OPEN
· DO NOT VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS
Flexible Circuit Board Repairing
· Keep the temperature of the soldering iron around 270 °C
during repairing.
· Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
· Be careful not to apply force on the conductor when soldering
or unsoldering.
Notes on chip component replacement
· Never reuse a disconnected chip component.
· Notice that the minus side of a tantalum capacitor may be
damaged by heat.
On AC power adaptor
·Use only the AC power adaptor supplied.
If your CD player is not supplied with the
one, use the AC-E30HG AC power
adaptor. Do not use any other AC power
adaptor. It may cause a malfunction.
Polarity of the plug
·Do not touch the AC power adaptor with
wet hands.
· Connect the AC power adaptor to an easily
accessible AC outlet. Should you notice an
abnormality in the AC power adaptor,
disconnect it from the AC outlet
immediately.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
· Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350
°C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
· Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
· Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
Terminals
· To clean the terminals
If the terminals on the charging stand become
dirty, the battery may not be charged properly.
Clean the terminals with a cotton swab or a
dry cloth periodically as illustrated below.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR
LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES
PIÈCES
SONT
CRITIQUES
POUR
LA
SÉCURITÉ
DE
FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS
QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT
DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS
PUBLIÉS PAR SONY.


background image
3
D-NE20/NE20LS
TABLE OF CONTENTS
1.
SERVICING NOTES ................................................ 4
2.
GENERAL ................................................................... 5
3.
DISASSEMBLY
3-1.
Disassembly Flow ...........................................................
6
3-2.
Lid Upper Assy ................................................................
7
3-3.
Cabi Mid Sub Assy ..........................................................
8
3-4.
EGH Board, JACK Board, JACK SUB Board,
CD Mechanism Deck (CDM-3325ERV) .........................
9
3-5.
Window (LED), Button (Control) ................................... 10
3-6.
Turn Table Motor Assy (M901),
Sled Motor Assy (M902),
Optical Pick-up (DAX-25EV) ......................................... 10
4.
ELECTRICAL CHECKING .................................... 11
5.
DIAGRAMS
5-1.
Block Diagram ................................................................ 13
5-2.
Printed Wiring Board ­ EGH Board (Side A) ­ ............. 14
5-3.
Printed Wiring Board ­ EGH Board (Side B) ­ ............. 15
5-4.
Schematic Diagram ­ EGH Board (1/3) ­ ...................... 16
5-5.
Schematic Diagram ­ EGH Board (2/3) ­ ...................... 17
5-6.
Schematic Diagram ­ EGH Board (3/3) ­ ...................... 18
5-7.
Printed Wiring Board ­ JACK Board (Side A),
JACK SUB Board, SUB Board ­ .................................... 19
5-8.
Printed Wiring Board ­ JACK Board (Side B) ­ ............ 20
5-9.
Schematic Diagram ­ JACK Board,
JACK SUB Board, SUB Board ­ ................................... 21
6.
EXPLODED VIEWS
6-1.
Overall Assy .................................................................... 27
6-2.
Cabinet (Lower) Section .................................................. 28
6-3.
CD Mechanism Section (CDM-3325ERV) ..................... 29
7.
ELECTRICAL PARTS LIST .................................. 30
You can play discs on this CD player.
Audio CDs:
CD-DA format CDs
CD-DA (Compact Disc Digital Audio) is a recording standard used for Audio CDs.
ATRAC CDs:
CD-R/CD-RW on which audio data compressed in the ATRAC3plus format
has been recorded by using SonicStage*
ATRAC3plus (Adaptive Transform Acoustic Coding3plus) is audio compression
technology that satisfies the demand for high sound quality and high compression
rates. ATRAC3plus can compress audio files to about 1/20 of their original size at 64
kbps.
Bit rates and sampling frequencies this CD player can play are:
Up to 62 characters can be displayed on this CD player.
MP3 CDs:
CD-R/CD-RW on which audio data compressed in the MP3 format has
been recorded by using a software other than SonicStage*
Bit rates and sampling frequencies this CD player can play are shown below. Variable
Bit Rate (VBR) files can also be played.
This CD player conforms to Version 1.0/1.1/2.2/2.3/2.4 of the ID3 tag format. ID3 tag
is a format for adding certain information (track name, album name, artist name, etc.)
to MP3 files. Up to 64 characters of ID3 tag information can be displayed on this CD
player.
CD-Extra and Mix-Mode CDs:
CD-R/CD-RW on which CD-DA format data and CD-ROM format data are
recorded together.*
If you cannot play your CD, change the "CD-EXTRA" setting in the OPTION menu.
Then you may play your CD.
An ATRAC CD on which audio data compressed in the MP3 format has been recorded
using software other than SonicStage can also be played.
With SonicStage, you cannot create a CD on which mixed format audio data is recorded.
* Only ISO 9660 Level 1/2 and Joliet extension format discs can be played.
Music discs encoded with copyright protection technologies
This product is designed to play back discs that conform to the Compact Disc (CD)
standard. Recently, various music discs encoded with copyright protectiontechnologies
are marketed by some record companies. Please be aware that among those discs,
there are some that do not conform to the CD standard and may not be playable by
this product.
Bit rates
Sampling frequencies
ATRAC3plus
48/64/256 kbps
44.1 kHz
ATRAC3
66/105/132 kbps
44.1 kHz
Bit rates
Sampling frequencies
MPEG-2 Layer3
8 - 160 kbps
16/22.05/23 kHz
MPEG-2.5 Layer3
8 - 160 kbps
8/11.025/12 kHz
MPEG-1 Layer3
32 - 320 kbps
32/44.1/48 kHz


background image
4
D-NE20/NE20LS
SECTION 1
SERVICING NOTES
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
LASER DIODE AND FOCUS SEARCH OPERATION
CHECK
During normal operation of the equipment, emission of the laser
diode is prohibited unless the upper lid is closed while turning ON
the S501. (push switch type)
The following checking method for the laser diode is operable.
· Method:
Emission of the laser diode is visually checked.

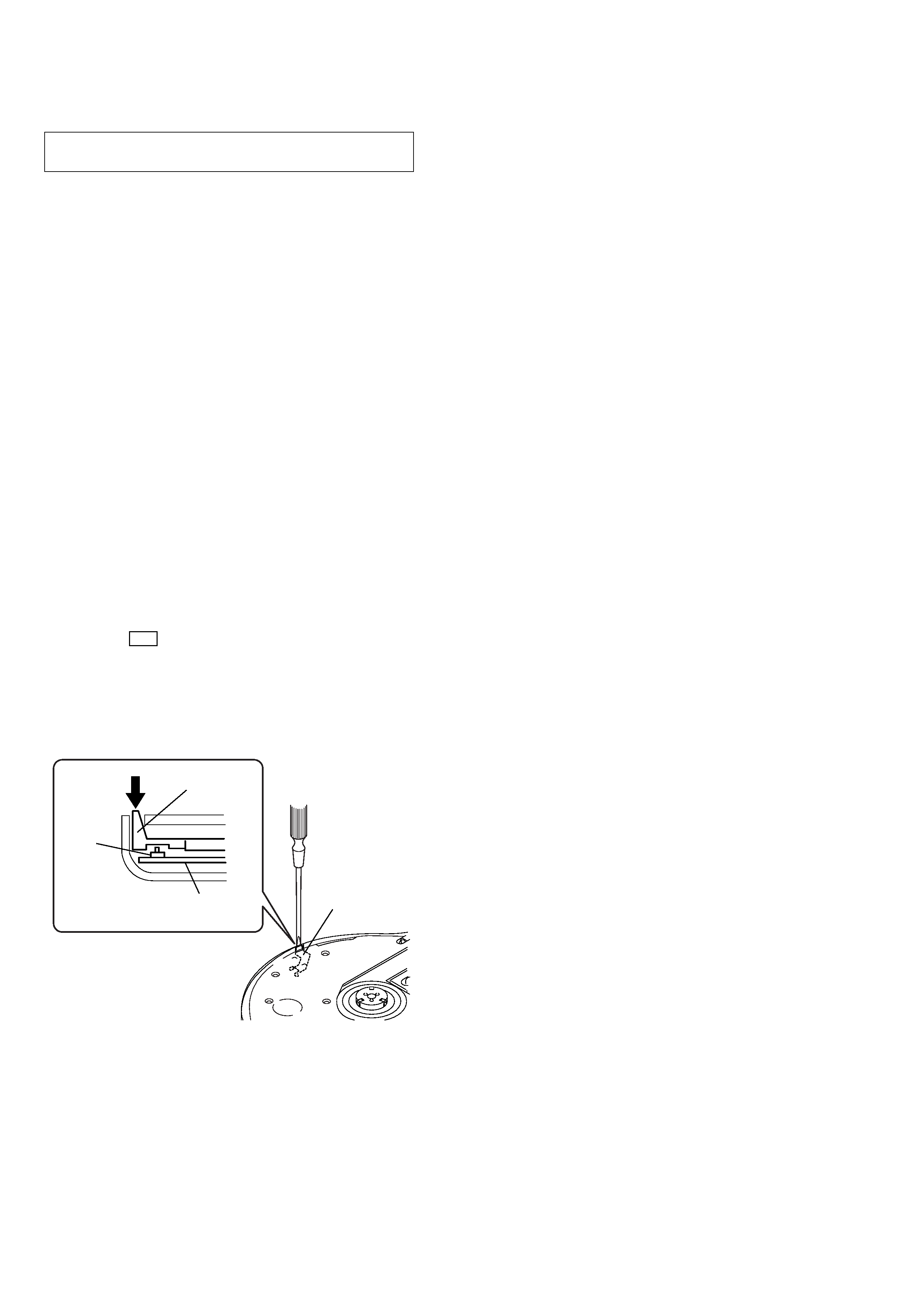

1. Open the upper lid.
2. With a disc not set, turn on the S501 with a screwdriver having
a thin tip as shown in Fig.1.
3. Press the u button.
4. Observing the objective lens, check that the laser diode emits
light.
When the laser diode does not emit light, automatic power
control circuit or optical pickup is faulty.
In this operation, the objective lens will move up and down 4
times along with inward motion for the focus search.
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
S501
lever (lid detection)
lever (lid detection)
JACK BOARD
Fig. 1 Method to push the S501
NOTES ON HANDLING OF PATCH
The handling of PATCH is necessary when a mounted EGH board
is exchanged or when EEPROM(IC602) on an EGH board is
exchanged.
Please confirm in each service front office about the infomation on
the handling of PATCH.
Ver. 1.2


background image
5
D-NE20/NE20LS
SECTION 2
GENERAL
This section is extracted
from instruction manual.
Tourist model
except Tourist models
Remote display
